Product details

Technical requirements:

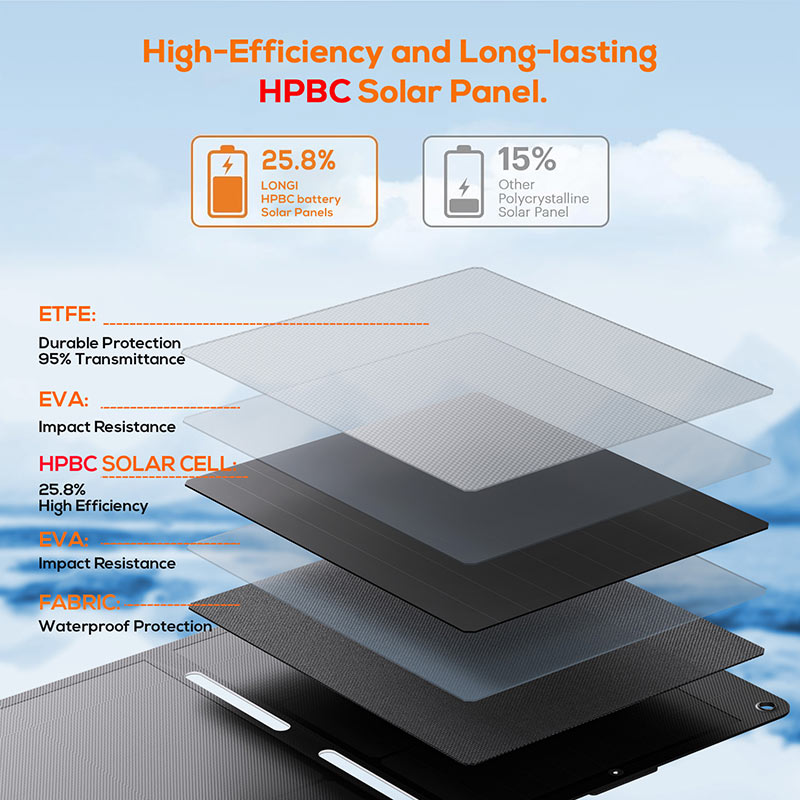

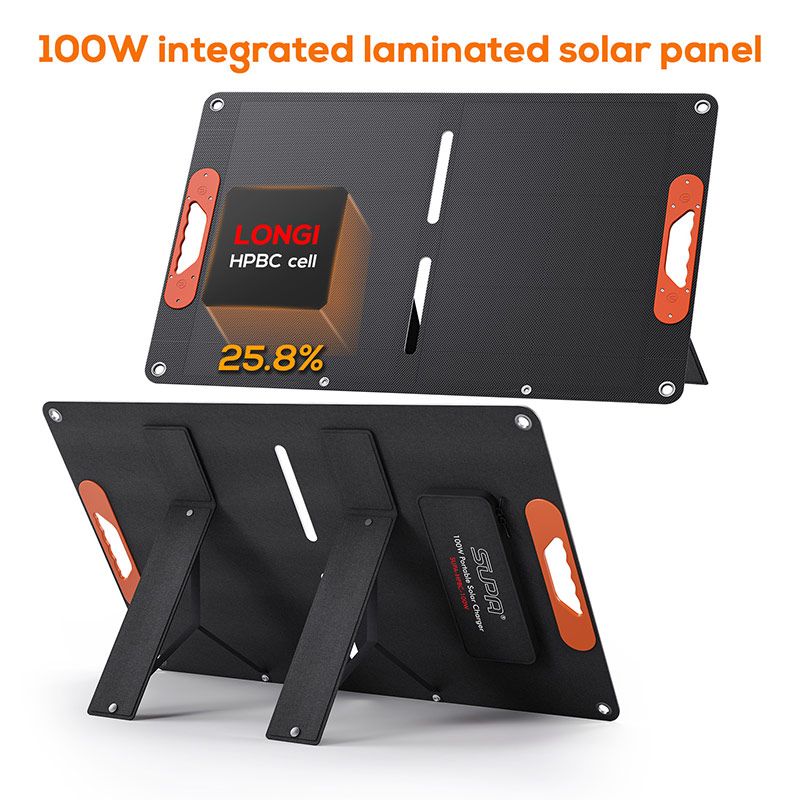

1. The product is a single glass component lamination process. The structure is as follows

ETFE/EVA/HPBC single product battery (182*184mm, conversion rate of 22.6%)/EVA/ glass

 fiber board/dance long cloth 2. International solar energy testing standard STC: solar radiation

 1000W/M, temperature 25℃, atmospheric quality AM1.53. Electrical performance refer to

 the parameters on the right, the cutting size of the battery piece is 182*38.33, and the

circuit connection is 3*10*2 series parallel. 4. The whole component reaches IP67 protection,

 and the flame retardant level reaches UL94-V0.

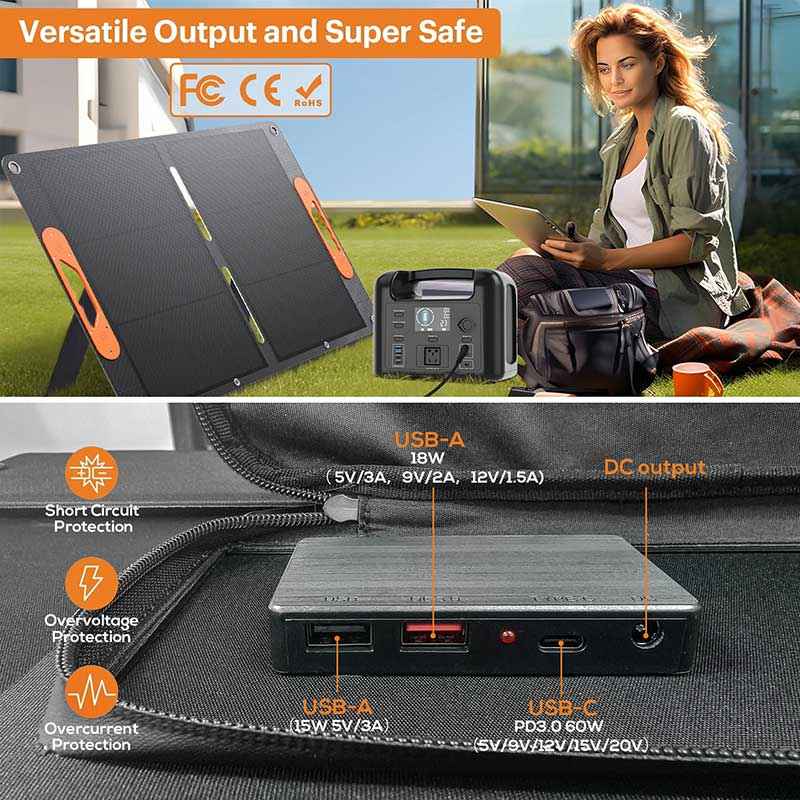

5. Junction box Model :PV-024 16AWG double core cable 1.5m long with MC4 connector:

6. Accessories :MC4 series line 1 and connected 2C4 to 5521 line 16# length 1.5m ten-in-one

converter head
