Product details

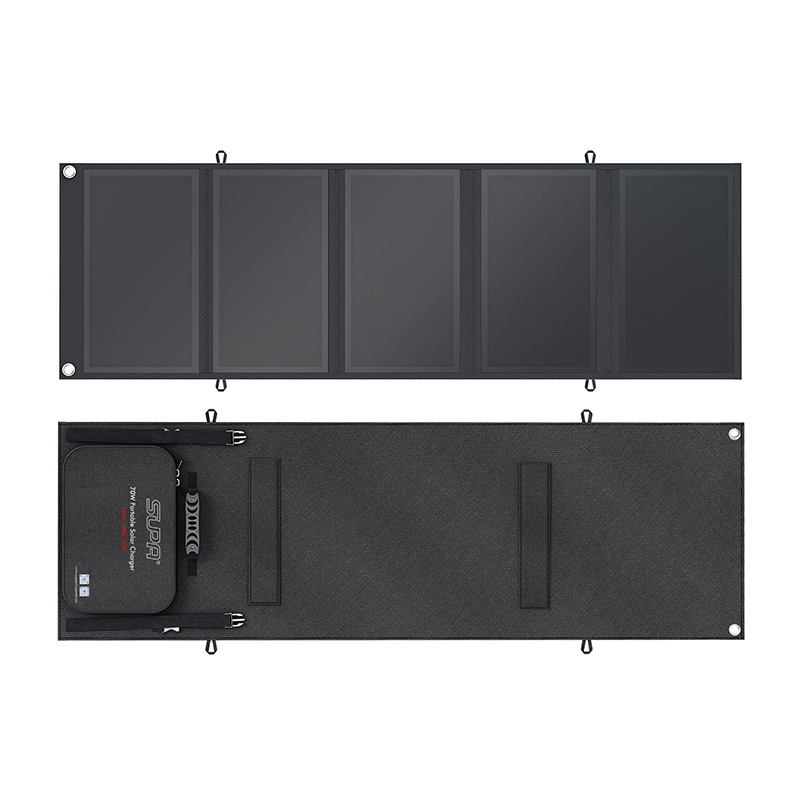

SUPA®70 W Portable Solar Panel (Mono HPBC)

1. Using the product for the first time, place it on a flat surface with the panel face up and gently and slowly peel off the film.

2. Operation

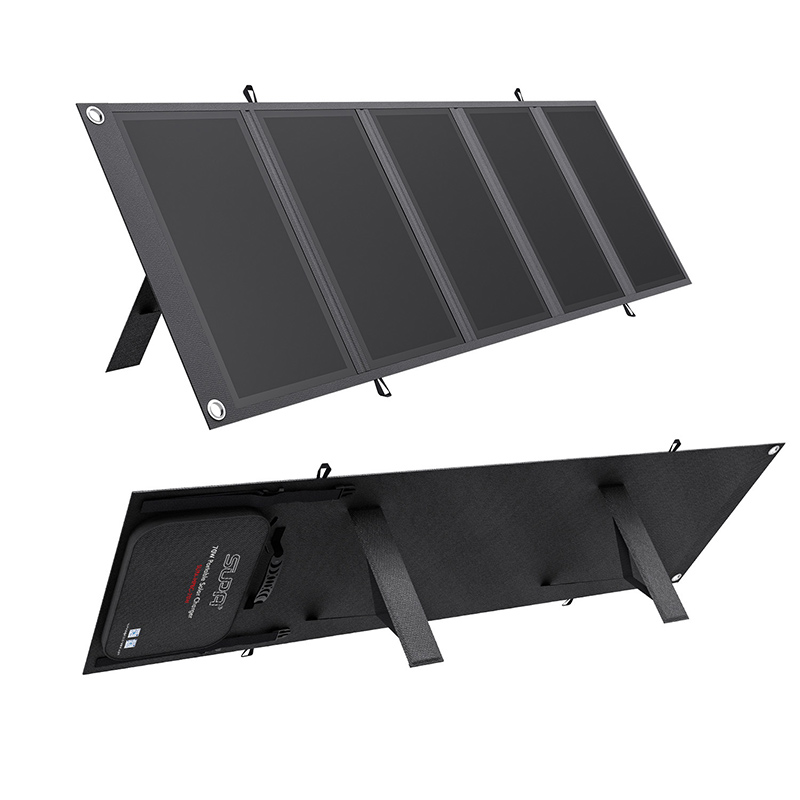

Place it open and facing the sun so that the sun shines vertically on the surface of the panel. As the sun moves, reposition the panel to maximize performance.

Panels work best in sunny weather, where clouds or shadows can affect panel performance. To avoid horizontal shading of the panel near the object. If it cannot be avoided, the vertical shading on the panel reduces performance much less than the horizontal trapping.

The panel has no battery, does not store energy, and when in use, the panel is connected to a device (mobile phone, laptop, etc.) or a portable power station to charge.

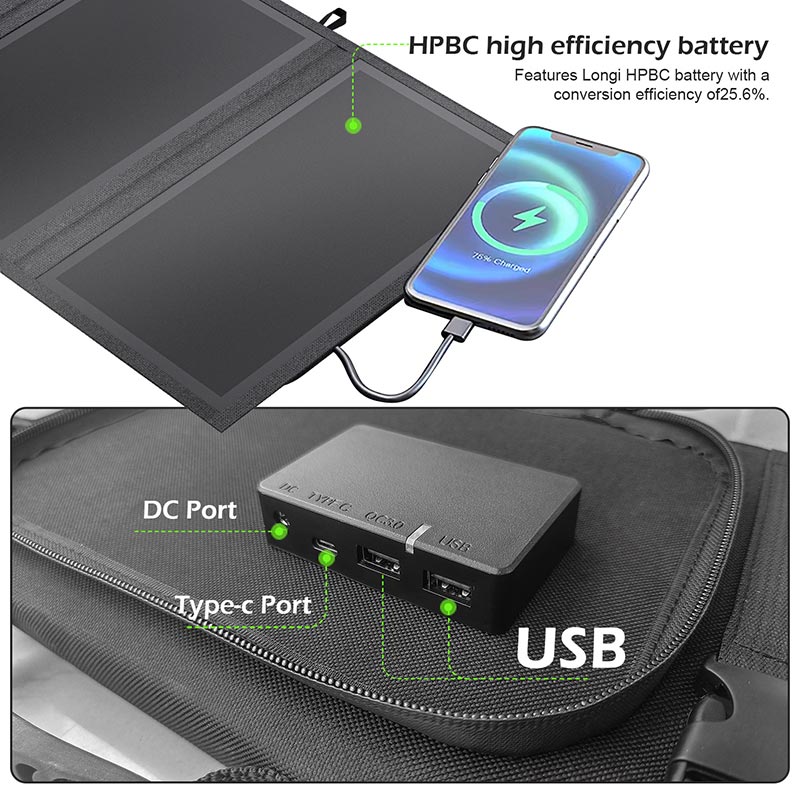

When using DC output connectors to charge portable power stations, solar generators, and other energy storage devices, make sure that these devices are compatible with the maximum voltage and current generated by the panel.

When charging batteries (including different types of lead-acid and lithium batteries) using a DC output connector, always connect the appropriate charge controller between the panel and the battery.

3. Performance

Proprietary battery sorting system ensures optimal cell matching.

Optimized performance in low light conditions... Comprehensive module power testing

4. Technical specifications

Power: 70W Output voltage: 42V

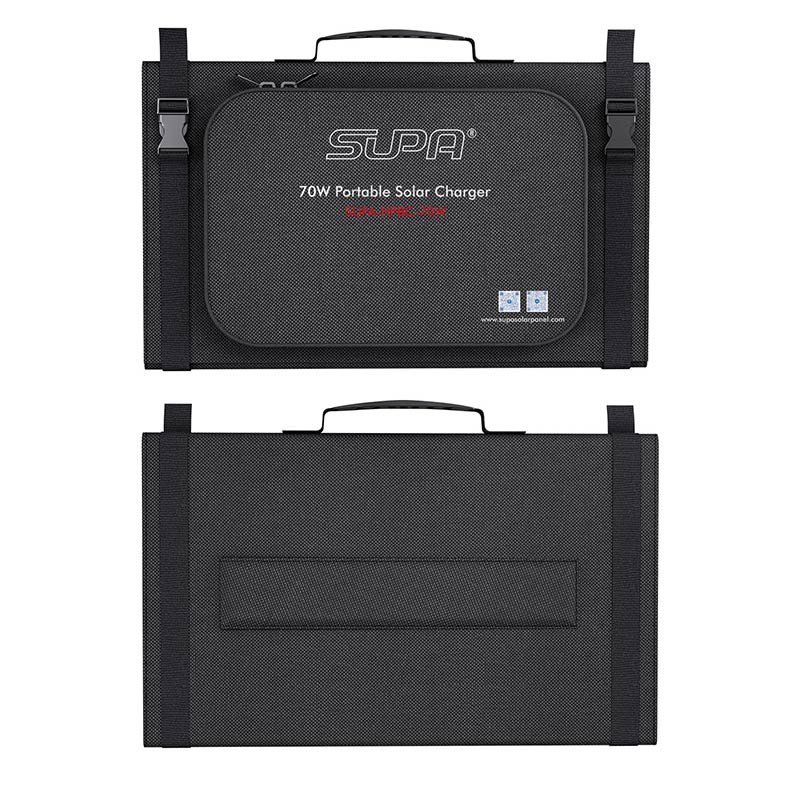

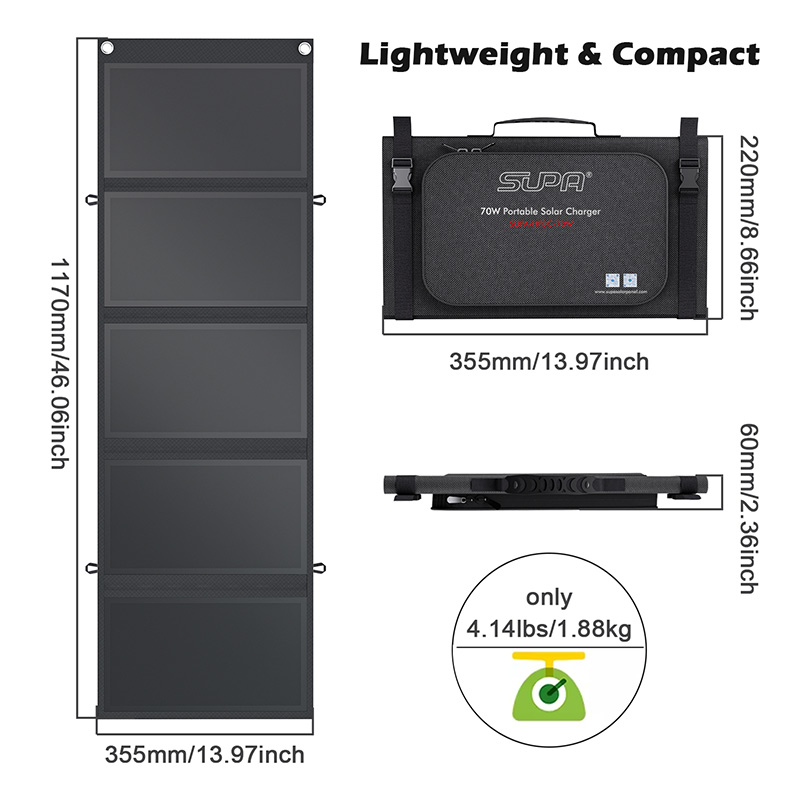

Expansion size: 1770*355* 16mm Folding size: 220*355* 45mm

5. Safety tips

Electric shock hazard - Do not touch the terminal.

Conductor, or jewelry, to prevent short circuits and sparks.

Do not bend the panel or apply heavy objects to it.

Do not use if the panel is damaged or not functioning properly.

Do not leave the panel outside when it is raining.
